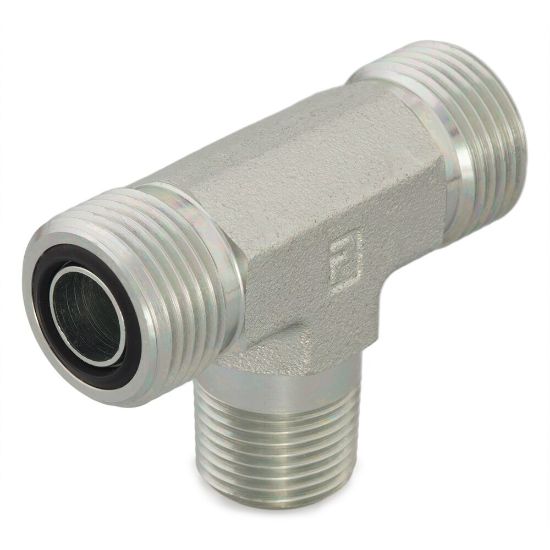

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8-8-8 SLO-S

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered
Partner Available:	6 in stock

SKU: 8-8-8 SLO-S

$58.32

Products specifications

Attribute name	Attribute value
Connection 4 Tube Outside Diameter	na	Connection 2 Thread Size	na
Connection 1 Tube Outside Diameter	12 mm	Connection 2 Tube Outside Diameter	1/2 inch
Dimensional Weight	0.07742805755395683 lb	Connection 3 Type	Male NPT/NPTF
O-Ring Material	90 Durometer Nitrile	Connection 4 Type	na
Connection 1 Type	Male O-Ring Face Seal	Shape	Tee
Connection 3 Tube Outside Diameter	na	Body Material	Steel
Specifications Met	SAE J1453	Connection 2 Type	Male O-Ring Face Seal
Connection 3 Thread Size	na	Maximum Dynamic Pressure	6000 psi
Connection Type	NPTF Branch Tee	Division	Tube Fittings Division

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
