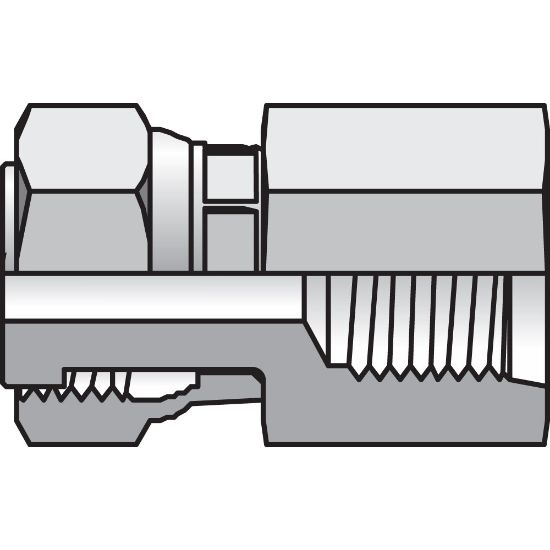

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8-4 G65L-S

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered
Partner Available:	27 in stock

SKU: 8-4 G65L-S

$18.83

Products specifications

Attribute name	Attribute value
Connection Type	Tube to SAE Straight Thread	O-Ring Material	90 Durometer Nitrile
Connection 4 Type	na	Dimensional Weight	0.07913669064748201 lb
Shape	Straight	Connection 3 Tube Outside Diameter	na
Body Material	Steel	Connection 3 Thread Size	na
Specifications Met	SAE J1453	Connection 4 Tube Outside Diameter	na
Maximum Dynamic Pressure	6000 psi	Division	Tube Fittings Division
Connection 1 Type	Female O-Ring Face Seal Swivel	Connection 3 Type	na
Connection 2 Thread Size	na	Connection 1 Tube Outside Diameter	12 mm
Connection 2 Tube Outside Diameter	na	Connection 2 Type	Female SAE-ORB

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
