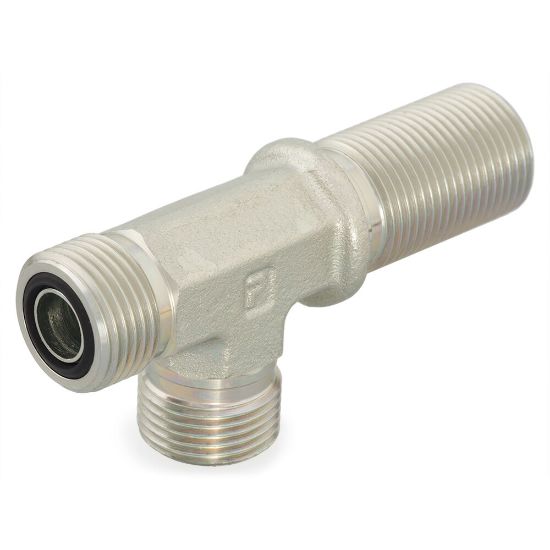

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 6WJJMLOS

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered
Partner Available:	Backordered

SKU: 6WJJMLOS

Products specifications

Attribute name	Attribute value
Shape	Tee	Connection 1 Type	Male O-Ring Face Seal
Connection 1 Tube Outside Diameter	8, 10 mm	Maximum Dynamic Pressure	9200 psi
Body Material	Steel	Connection 2 Tube Outside Diameter	3/8 inch
Connection Type	O-ring Face Seal	Connection 3 Thread Size	na
Specifications Met	SAE J1453	Division	Tube Fittings Division
Connection 4 Tube Outside Diameter	na	Connection 3 Tube Outside Diameter	3/8 inch
Connection 3 Type	Male O-Ring Face Seal	Connection 2 Thread Size	na
Connection 2 Type	Male O-Ring Face Seal Bulkhead	O-Ring Material	90 Durometer Nitrile
Connection 4 Type	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
