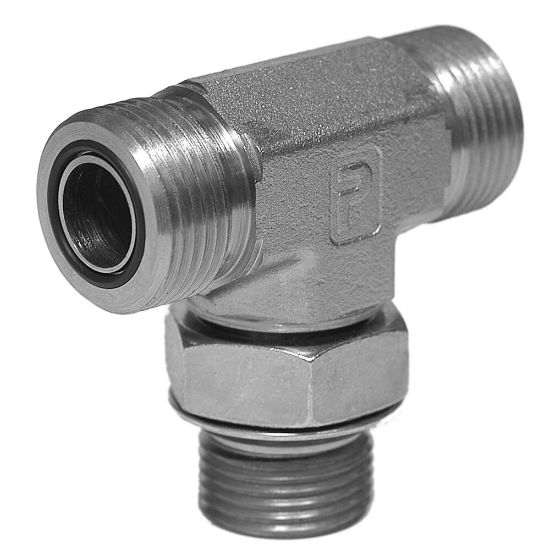

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 6S5OMLOS

Name: Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 6S5OMLOS
SKU: 6S5OMLOS
Availability: OutOfStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:

Backordered

SKU: 6S5OMLOS

Qty:

Products specifications

Attribute name	Attribute value
Connection 4 Tube Outside Diameter	na	Connection 2 Thread Size	na
Connection Type	Branch Tee	O-Ring Material	90 Durometer Nitrile
Connection 4 Type	na	Specifications Met	SAE J1453, ISO 8434-3
Connection 1 Type	Male O-Ring Face Seal	Connection 3 Tube Outside Diameter	na
Connection 2 Tube Outside Diameter	3/8 inch	Shape	Tee
Connection 2 Type	Male O-Ring Face Seal	Connection 3 Thread Size	na
Body Material	Steel	Connection 1 Tube Outside Diameter	3/8 inch
Connection 3 Type	Male ISO 11926	Division	Tube Fittings Division
Maximum Dynamic Pressure	6000 psi

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
