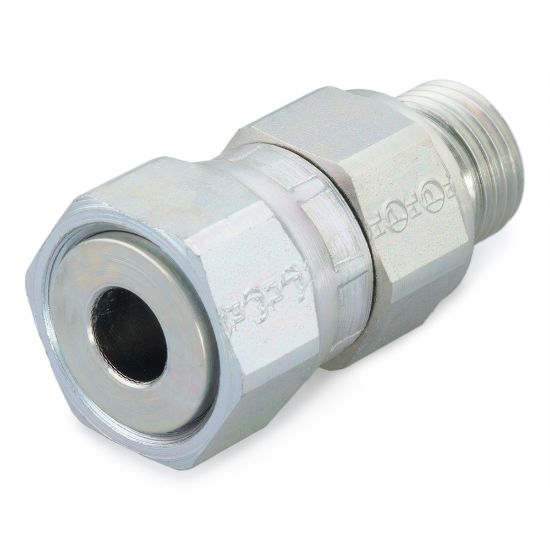

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 6M12F682EDMLS

Name: Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 6M12F682EDMLS
SKU: 6M12F682EDMLS
Availability: OutOfStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:

Backordered

SKU: 6M12F682EDMLS

Qty:

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Tube Outside Diameter	na
Connection 3 Type	na	Connection 2 Thread Size	M12X1.5
Connection 2 Type	Male metric thread - ED seal (ISO 9974)	O-Ring Material	90 Durometer Nitrile
Connection 4 Type	na	Connection 2 Tube Outside Diameter	na mm
Connection Type	Tube to SAE Straight Thread	Connection 3 Tube Outside Diameter	na
Shape	Straight	Body Material	Steel
Connection 1 Tube Outside Diameter	8, 10 mm	Specifications Met	SAE J1453
Connection 1 Type	Female O-Ring Face Seal Swivel	Connection 3 Thread Size	na
Maximum Dynamic Pressure	7200 psi

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
