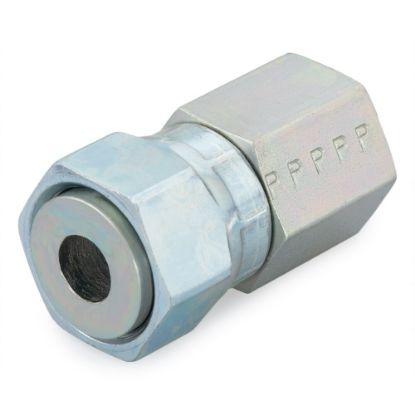

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 4 C5OLO-S

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	74 in stock
Partner Available:	1080 in stock

SKU: 4 C5OLO-S

$5.60

Products specifications

Attribute name	Attribute value
Connection 2 Type	Male SAE-ORB	Connection 1 Tube Outside Diameter	1/4 inch
Division	Tube Fittings Division	Connection 4 Tube Outside Diameter	na
Connection 3 Type	na	Shape	90° Elbow
Connection 1 Type	Male O-Ring Face Seal	Specifications Met	SAE J1453
Maximum Dynamic Pressure	6000 psi	Connection 3 Thread Size	na
Connection Type	O-ring Face Seal	Body Material	Steel
Connection 4 Type	na	Connection 3 Tube Outside Diameter	na
Connection 2 Thread Size	7/16-20 inch	Connection 2 Tube Outside Diameter	na
Dimensional Weight	0.042491007194244604 lb	O-Ring Material	90 Durometer Nitrile
