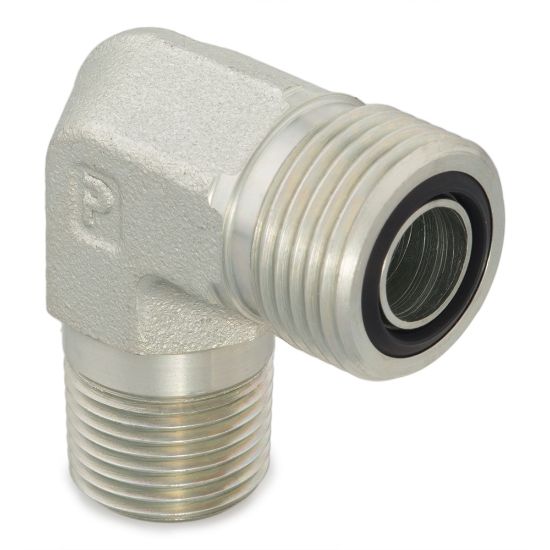

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 12-8 CLO-S

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	6 in stock
Partner Available:	64 in stock

SKU: 12-8 CLO-S

$64.04

Products specifications

Attribute name	Attribute value
Shape	90° Elbow	Body Material	Steel
Connection Type	O-ring Face Seal	O-Ring Material	90 Durometer Nitrile
Dimensional Weight	0.12464028776978417 lb	Specifications Met	SAE J1453
Division	Tube Fittings Division	Connection 2 Thread Size	1/2-14 inch
Connection 3 Thread Size	na	Maximum Dynamic Pressure	6000 psi
Connection 1 Tube Outside Diameter	18, 20 mm	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 1 Type	Male O-Ring Face Seal	Connection 2 Type	Male NPT/NPTF
Connection 3 Type	na	Connection 4 Type	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
