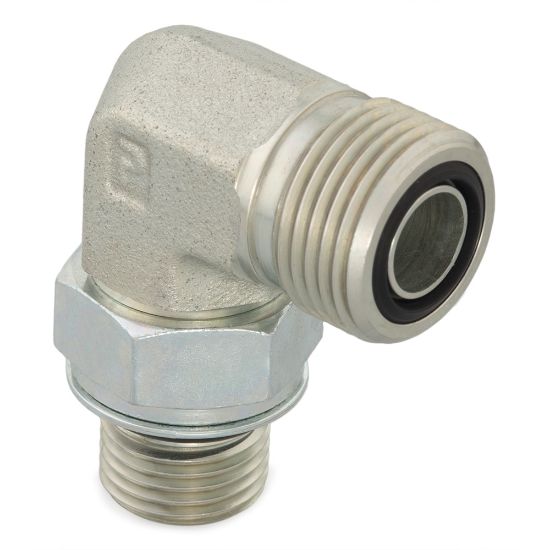

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10M18C87OMLOS

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered
Partner Available:	18 in stock

SKU: 10M18C87OMLOS

$37.87

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Maximum Dynamic Pressure	6000 psi
Body Material	Steel	O-Ring Material	90 Durometer Nitrile
Shape	90° Elbow	Connection 1 Type	Male O-Ring Face Seal
Connection 3 Type	na	Connection 4 Type	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	5/8 inch
Connection 2 Tube Outside Diameter	na	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Connection 2 Type	Male ISO 6149
Connection Type	Tube to ISO 6149	Specifications Met	SAE J1453, ISO 8434-3
Connection 2 Thread Size	M18x1.5 mm	Dimensional Weight	0.06452338129496403 lb

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
