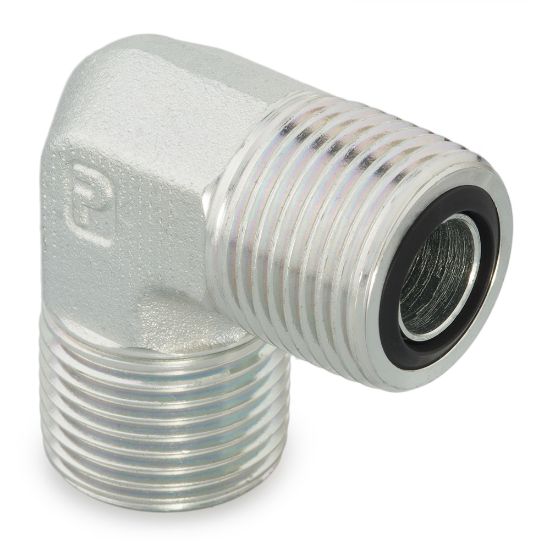

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10EMLOSS

Name: Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10EMLOSS
SKU: 10EMLOSS
Availability: OutOfStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:

Backordered

SKU: 10EMLOSS

Qty:

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	O-Ring Material	90 Durometer Nitrile
Connection 4 Type	na	Connection 2 Tube Outside Diameter	14, 15, 16 mm
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Body Material	Stainless Steel
Connection 1 Type	Male O-Ring Face Seal	Connection 3 Tube Outside Diameter	na
Shape	90° Elbow	Specifications Met	SAE J1453
Connection 3 Thread Size	na	Connection 2 Type	Male O-Ring Face Seal
Maximum Dynamic Pressure	6000 psi	Connection 3 Type	na
Connection 4 Tube Outside Diameter	na	Connection 2 Thread Size	na
Connection Type	Tube to Tube with Metric Hex

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
