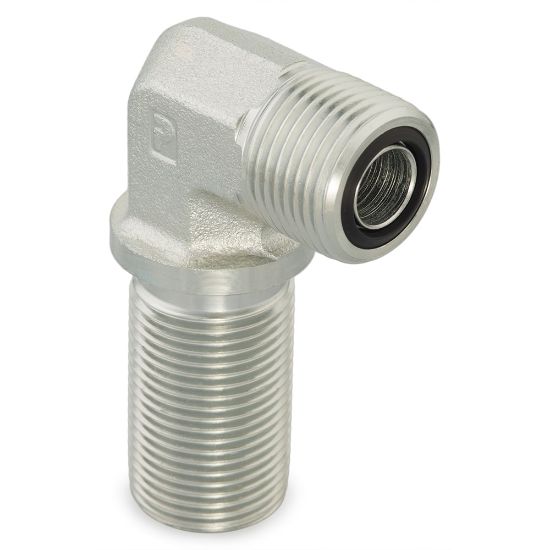

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10 WELO-WLNL-S

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered
Partner Available:	4 in stock

SKU: 10 WELO-WLNL-S

$49.31

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Dimensional Weight	0.11236510791366906 lb
Maximum Dynamic Pressure	6000 psi	Body Material	Steel
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J1453
Shape	90° Elbow	Connection Type	O-ring Face Seal
Connection 1 Type	Male O-Ring Face Seal	Connection 3 Type	na
Connection 4 Type	na	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Connection 2 Tube Outside Diameter	14, 15, 16 mm	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Connection 2 Type	Male O-Ring Face Seal Bulkhead with Locknut

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
