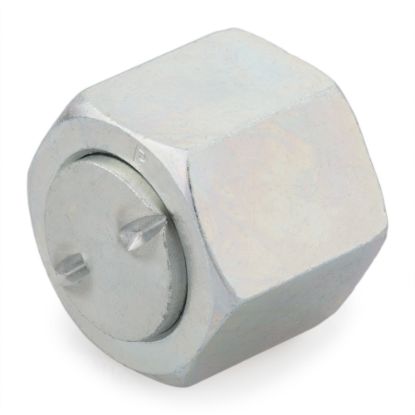

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10 FNL-S

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	119 in stock
Partner Available:	1128 in stock

SKU: 10 FNL-S

$8.84

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Maximum Dynamic Pressure	6000 psi
Dimensional Weight	0.03871402877697842 lb	Body Material	Steel
O-Ring Material	na	Specifications Met	SAE J1453
Connection Type	na	Connection 1 Type	Female O-Ring Face Seal
Connection 2 Type	na	Connection 3 Type	na
Connection 4 Type	na	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	5/8 inch
Connection 2 Tube Outside Diameter	na	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Shape	Cap
