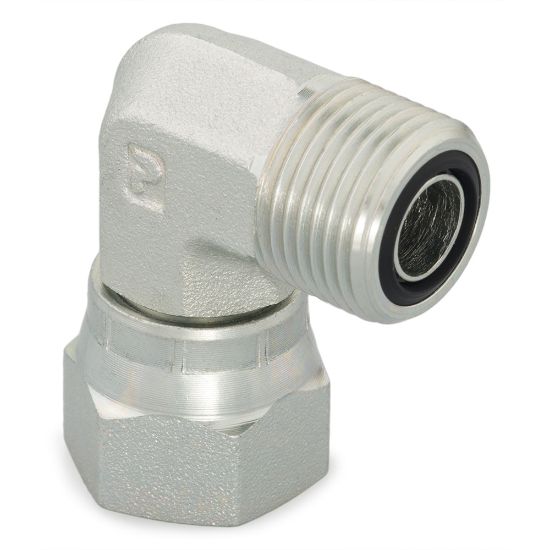

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10 C6LO-S

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	27 in stock
Partner Available:	298 in stock

SKU: 10 C6LO-S

$24.68

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Maximum Dynamic Pressure	6000 psi
Body Material	Steel	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J1453	Dimensional Weight	0.10280463129496402 lb
Shape	90° Elbow	Connection Type	Tube to Tube
Connection 1 Type	Male O-Ring Face Seal	Connection 2 Type	Female O-Ring Face Seal Swivel
Connection 3 Type	na	Connection 4 Type	na
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 2 Tube Outside Diameter	14, 15, 16 mm
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
