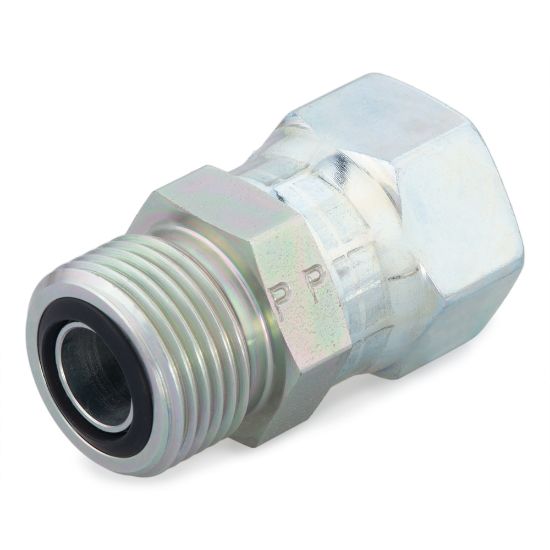

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10-8 LOHL6-S

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered
Partner Available:	20 in stock

SKU: 10-8 LOHL6-S

$46.44

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Dimensional Weight	0.07913669064748201 lb
Maximum Dynamic Pressure	6000 psi	Body Material	Steel
Shape	Straight	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J1453	Connection 1 Type	Male O-Ring Face Seal
Connection 2 Type	Female O-Ring Face Seal Swivel	Connection 3 Type	na
Connection 4 Type	na	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Connection 2 Tube Outside Diameter	1/2 inch	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Connection Type	Tube to Tube Extender/Expander

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok
