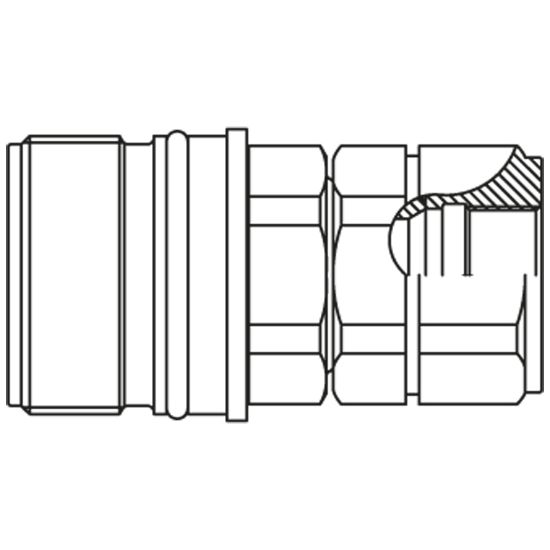

Screw-to-Connect Quick Coupling - Series QHPA - QHPA56-G4X8-C

Name: Screw-to-Connect Quick Coupling - Series QHPA - QHPA56-G4X8-C
SKU: QHPA56-G4X8-C
Availability: OutOfStock

Screw-to-connect quick coupling system made of steel with body size 3/8" up to 1" for pressure up to 450 bar.

Availability:

Backordered

SKU: QHPA56-G4X8-C

Qty:

Products specifications

Attribute name	Attribute value
Outside Diameter	n/a	Size	6 inch
Maximum Operating Pressure	370 bar	Seal Material	NBR
Length	101 mm	Materials of Construction	Silver Plated
Division	High Pressure Connectors Europe Division	Weight	786 g
Maximum Operating Temperature	110 °C	Hex Size	41 mm
Minimum Operating Temperature	-25 °C
Connection Type	Female BSPP Thread – DIN 3852 Form Y	Connection Thread Size	1"
Fitting Type	Coupling	Version	N/A
Body Size	3/4"

Product resources

Literature and Reference Materials

Literature and Reference Materials,Selector Guides

파카_Non-Spill Quick Coupling_FEM_FF_QHPA시리즈

Compliance, Certifications & Safety

Safety instructions Quick Couplings
