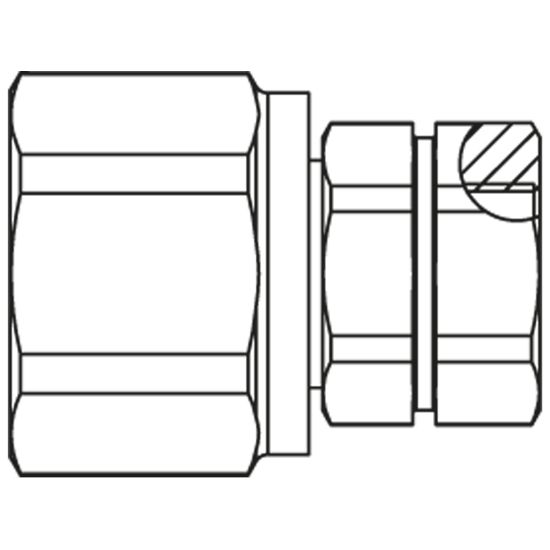

Screw-to-Connect Quick Coupling - Series QHPA - QHPA16-G4X6-C

Name: Screw-to-Connect Quick Coupling - Series QHPA - QHPA16-G4X6-C
SKU: QHPA16-G4X6-C
Availability: OutOfStock

Screw-to-connect quick coupling system made of steel with body size 3/8" up to 1" for pressure up to 450 bar.

Availability:

Backordered

SKU: QHPA16-G4X6-C

Qty:

Products specifications

Attribute name	Attribute value
Size	6 inch	Materials of Construction	Steel
Hex Size	41 mm	Seal Material	NBR
Maximum Operating Temperature	110 °C	Length	79 mm
Outside Diameter	55 mm	Weight	765 g
Division	High Pressure Connectors Europe Division	Minimum Operating Temperature	-25 °C
Maximum Operating Pressure	370 bar
Connection Type	Female BSPP Thread – DIN 3852 Form Y	Fitting Type	Plug
Connection Thread Size	3/4"	Body Size	3/4"
Version	N/A
