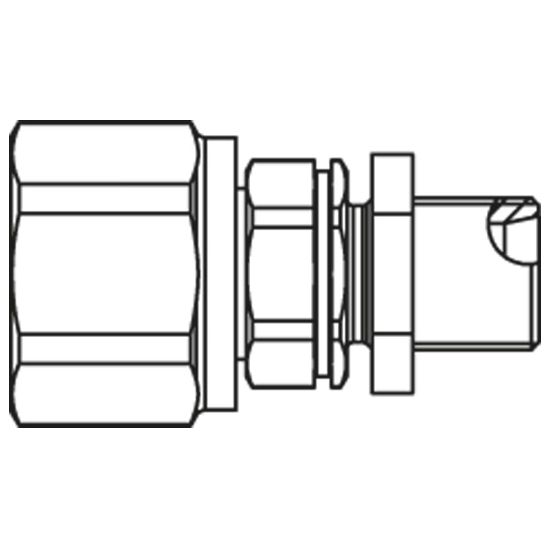

Screw-to-Connect Quick Coupling - Series QHPA - QHPA16-E7X8-C

Name: Screw-to-Connect Quick Coupling - Series QHPA - QHPA16-E7X8-C
SKU: QHPA16-E7X8-C
Availability: OutOfStock

Screw-to-connect quick coupling system made of steel with body size 3/8" up to 1" for pressure up to 450 bar.

Availability:

Backordered

SKU: QHPA16-E7X8-C

Qty:

Products specifications

Attribute name	Attribute value
Division	High Pressure Connectors Europe Division	Minimum Operating Temperature	-25 °C
Outside Diameter	55 mm	Maximum Operating Temperature	110 °C
Hex Size	41 mm	Maximum Operating Pressure	370 bar
Length	105 mm	Weight	845 g
Materials of Construction	Steel	Size	6 inch
Seal Material	NBR
Connection Type	Male thread 24° cone – DIN 2353 Bulkhead	Body Size	3/4"
Version	Heavy Series	Connection Thread Size	36x2 mm
Fitting Type	Plug
