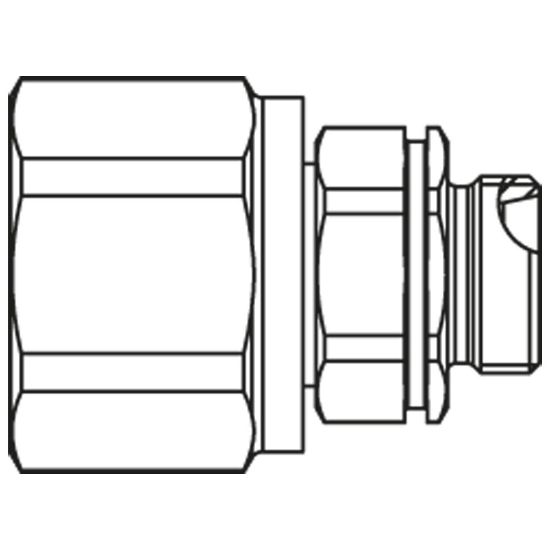

Screw-to-Connect Quick Coupling - Series QHPA - QHPA16-D7X7-C

Name: Screw-to-Connect Quick Coupling - Series QHPA - QHPA16-D7X7-C
SKU: QHPA16-D7X7-C
Availability: OutOfStock

Screw-to-connect quick coupling system made of steel with body size 3/8" up to 1" for pressure up to 450 bar.

Availability:

Backordered

SKU: QHPA16-D7X7-C

Qty:

Products specifications

Attribute name	Attribute value
Outside Diameter	55 mm	Division	High Pressure Connectors Europe Division
Minimum Operating Temperature	-25 °C	Maximum Operating Pressure	370 bar
Size	6 inch	Length	82 mm
Materials of Construction	Steel	Maximum Operating Temperature	110 °C
Seal Material	NBR	Weight	674 g
Hex Size	41 mm
Body Size	3/4"	Connection Type	Male thread 24° cone – DIN 2353
Version	Heavy Series	Connection Thread Size	30x2 mm
Fitting Type	Plug
