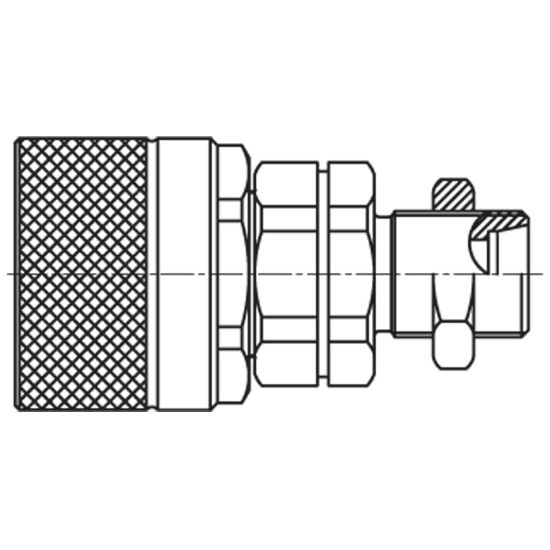

Screw-to-Connect Quick Coupling - Series QHPA - QHPA14-E6X4-C

Name: Screw-to-Connect Quick Coupling - Series QHPA - QHPA14-E6X4-C
SKU: QHPA14-E6X4-C
Availability: OutOfStock

Screw-to-connect quick coupling system made of steel with body size 3/8" up to 1" for pressure up to 450 bar.

Availability:

Backordered

SKU: QHPA14-E6X4-C

Qty:

Products specifications

Attribute name	Attribute value
Length	81 mm	Division	High Pressure Connectors Europe Division
Minimum Operating Temperature	-25 °C	Maximum Operating Temperature	110 °C
Outside Diameter	42 mm	Hex Size	30 mm
Weight	270 g	Maximum Operating Pressure	400 bar
Materials of Construction	Steel	Size	3 inch
Seal Material	NBR
Body Size	1/2"	Connection Thread Size	18x1.5 mm
Connection Type	Male thread 24° cone – DIN 2353 Bulkhead	Version	Light Series
Fitting Type	Plug
