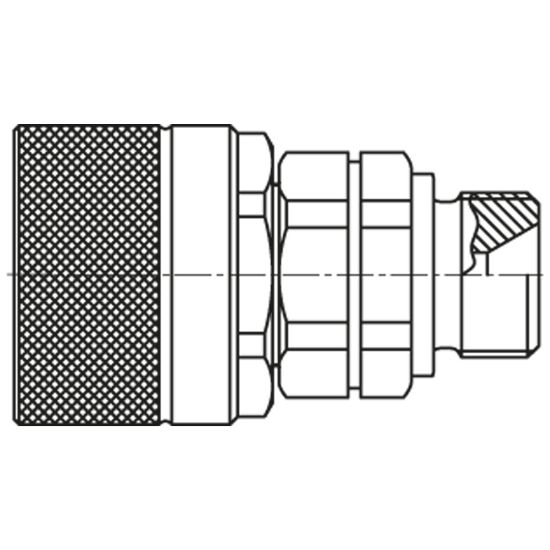

Screw-to-Connect Quick Coupling - Series QHPA - QHPA13-F4B3-C

Name: Screw-to-Connect Quick Coupling - Series QHPA - QHPA13-F4B3-C
SKU: QHPA13-F4B3-C
Availability: OutOfStock

Screw-to-connect quick coupling system made of steel with body size 3/8" up to 1" for pressure up to 450 bar.

Availability:

Backordered

SKU: QHPA13-F4B3-C

Qty:

Products specifications

Attribute name	Attribute value
Division	High Pressure Connectors Europe Division	Hex Size	22 mm
Minimum Operating Temperature	-25 °C	Maximum Operating Temperature	110 °C
Outside Diameter	34 mm	Materials of Construction	Steel
Length	72 mm	Maximum Operating Pressure	450 bar
Seal Material	NBR	Size	2 inch
Weight	188 g
Version	N/A	Connection Type	Male BSPP Thread – DIN 3852 Form B
Body Size	3/8"	Connection Thread Size	3/8"
Fitting Type	Plug

Product resources

Literature and Reference Materials

Literature and Reference Materials,Selector Guides

파카_Non-Spill Quick Coupling_FEM_FF_QHPA시리즈

Compliance, Certifications & Safety

Safety instructions Quick Couplings
