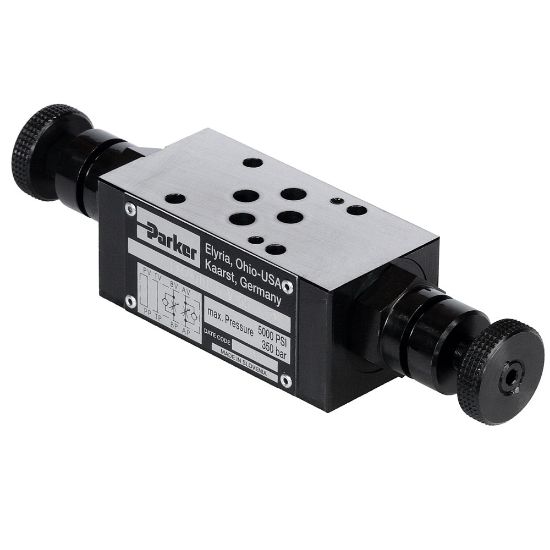

Sandwich Throttle Check Valve - FM Series(AP) - SFM2BBSN

Name: Sandwich Throttle Check Valve - FM Series(AP) - SFM2BBSN
SKU: SFM2BBSN
Availability: OutOfStock

Parker double-throttle check valves series FM in sandwich design offer an easy configuration of stack systems and provide a very good price-performance ratio. They are optionally available with a cylindrical needle for fine adjustment in NG06 and NG10.

Availability:

Backordered

SKU: SFM2BBSN

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Nodular cast iron	Seal Material	NBR
Maximum Operating Temperature	60 °C	Product Series	Throttle Check Valve
Weight	1.3 kg	Mounting Type	Sandwich Plate
Division	Control Division China	Minimum Opening Pressure	0.3 bar
Interface Type	CETOP 03 / NFPA D03	Configuration	n/a
Minimum Operating Temperature	-20 °C	Maximum Operating Pressure	350 bar
Maximum Flow Rate	53 L/min	Actuation Type	Manually
Version	Standard conical	Function	BB - Only Port B Meter-in/out throttle
Adjustment Type	Hexagon socket	Nominal Size	NG06
Material - Seals	N - NBR
