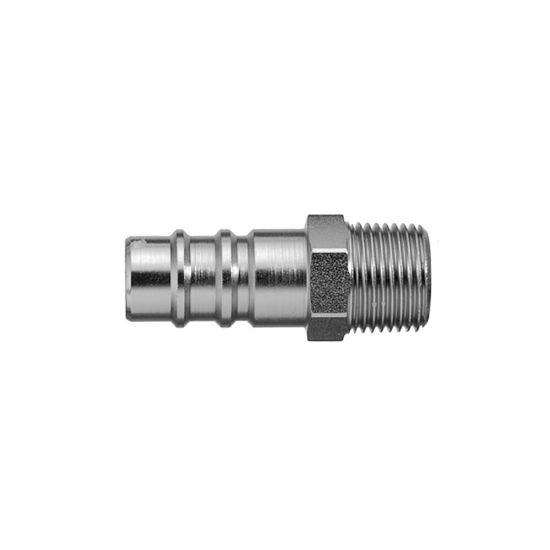

Safety Quick Coupling with Parker Profile and Additional Safety Locking, Series 28 - 28SSAK21SXN

Name: Safety Quick Coupling with Parker Profile and Additional Safety Locking, Series 28 - 28SSAK21SXN
SKU: 28SSAK21SXN
Availability: OutOfStock

Safety quick coupling system with nominal diameter 10.5 for pneumatic and fluid handling applications in the rescue market up to 35 bar. Coupling system with Parker profile. Available made of brass/steel.

Availability:

Backordered

SKU: 28SSAK21SXN

Qty:

Products specifications

Attribute name	Attribute value
Version	Single Shut-Off	Outside Diameter	na
Minimum Operating Temperature	-20 °C	Seal Material	na
Materials of Construction	Steel nickel plated	Length	50 mm
Diameter	10,5 nom	Hex Size	22 mm
Flow Rate	3500 L/min	Maximum Operating Temperature	100 °C
Division	Low Pressure Connectors Europe Division	Valve Included	No
Maximum Operating Pressure	35 bar
Type	Plug - Safety	Hose I.D.	na
Connection Type	Male Thread - tapered	Connection Thread Size (inch)	1/2

California Residents: Prop-65 Warning

Product resources

Compliance, Certifications & Safety

Certificate of conformity - 2014 68 EU_connectic

Literature and Reference Materials
