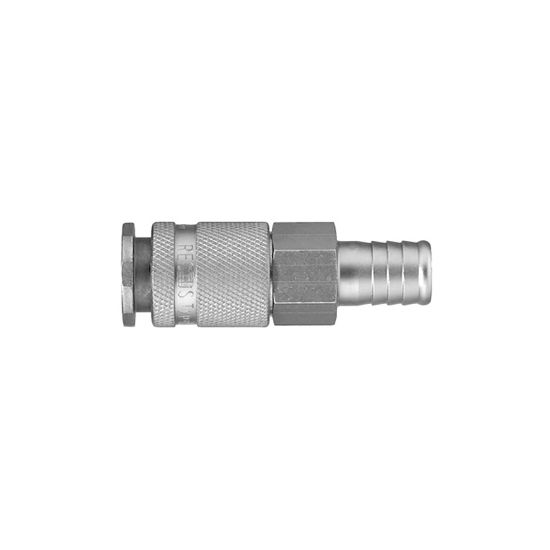

Safety Quick Coupling with Parker Profile and Additional Safety Locking, Series 28 - 28KSTF19SPN

Name: Safety Quick Coupling with Parker Profile and Additional Safety Locking, Series 28 - 28KSTF19SPN
SKU: 28KSTF19SPN
Availability: OutOfStock

Safety quick coupling system with nominal diameter 10.5 for pneumatic and fluid handling applications in the rescue market up to 35 bar. Coupling system with Parker profile. Available made of brass/steel.

Availability:

Backordered

SKU: 28KSTF19SPN

Qty:

Products specifications

Attribute name	Attribute value
Valve Included	Yes	Version	Single Shut-Off
Materials of Construction	Steel nickel plated	Outside Diameter	28 mm
Minimum Operating Temperature	-20 °C	Hex Size	24 mm
Maximum Operating Temperature	100 °C	Diameter	10,5 nom
Length	81,5 mm	Seal Material	NBR
Maximum Operating Pressure	35 bar	Division	Low Pressure Connectors Europe Division
Flow Rate	3500 L/min
Hose I.D.	19	Type	Coupling - Safety
Connection Type	Hose Barb	Connection Thread Size (inch)	na
