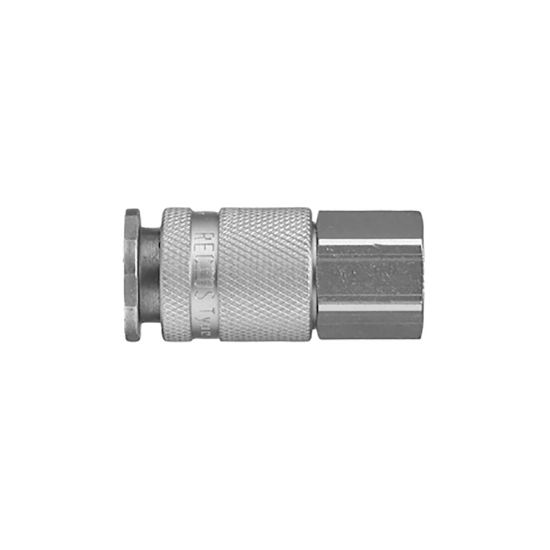

Safety Quick Coupling with Parker Profile and Additional Safety Locking, Series 28 - 28KSIW21SPN

Name: Safety Quick Coupling with Parker Profile and Additional Safety Locking, Series 28 - 28KSIW21SPN
SKU: 28KSIW21SPN
Availability: OutOfStock

Safety quick coupling system with nominal diameter 10.5 for pneumatic and fluid handling applications in the rescue market up to 35 bar. Coupling system with Parker profile. Available made of brass/steel.

Availability:

Backordered

SKU: 28KSIW21SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Maximum Operating Pressure	35 bar	Version	Single Shut-Off
Valve Included	Yes	Hex Size	24 mm
Length	61,5 mm	Materials of Construction	Steel nickel plated
Flow Rate	3500 L/min	Outside Diameter	28 mm
Diameter	10,5 nom
Hose I.D.	na	Connection Type	Female Thread - parallel
Connection Thread Size (inch)	1/2	Type	Coupling - Safety
