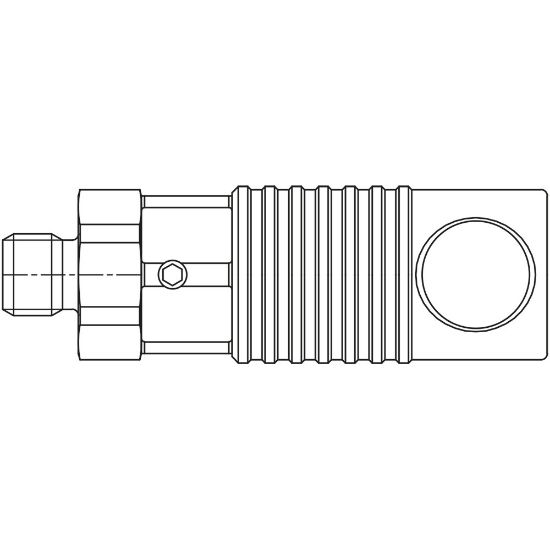

Safety Push Button Quick Coupling, Series KP - 84KPAW21APX

Name: Safety Push Button Quick Coupling, Series KP - 84KPAW21APX
SKU: 84KPAW21APX
Availability: OutOfStock

Self-venting quick coupling system with push button, nominal diameter from 5.5 to 8 mm for pneumatic applications up to 12 bar. Coupling system with ISO B, ISO C and Euro profile. Made of anodised aluminium/nickel plated brass/NBR seals.

Availability:

Backordered

SKU: 84KPAW21APX

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	100 °C	O-Ring Material	NBR
Division	Low Pressure Connectors Europe Division	Weight	0.17 kg
Body Material	Aluminum, Anodised	Media	Compressed Air
Maximum Operating Pressure	12 bar	Minimum Operating Temperature	-20 °C
Quantity per Box	5	Specifications Met	DI: 2002/95/EC (RoHS), 2011/65/EC, DI: 1907/2006 (REACH), ISO 4414 Pneumatic Fluid Power: General Rules Relating to Systems
Industry Application	Workshops, Cleaning, Blowing, Pneumatics, Air-Operated Tools, Ring Main Circuits, Packaging
Diameter	8 DN	Connection Type	Male, BSPP
Connection Size	G 1/2	Profile	ISO C Profile
