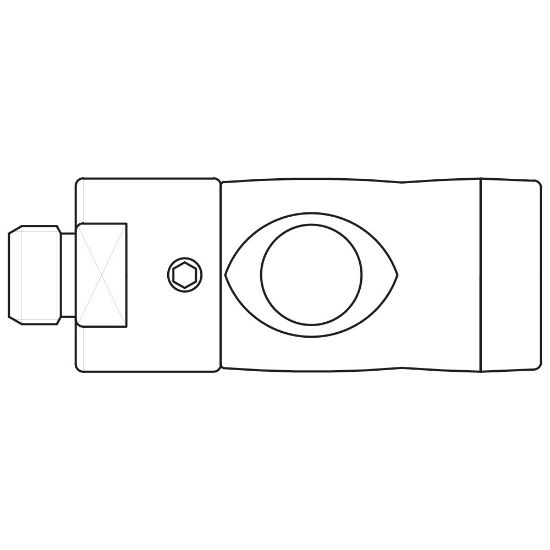

Safety Push Button Quick Coupling, Series KP - 26KPAW13APX

Name: Safety Push Button Quick Coupling, Series KP - 26KPAW13APX
SKU: 26KPAW13APX
Availability: OutOfStock

Self-venting quick coupling system with push button, nominal diameter from 5.5 to 8 mm for pneumatic applications up to 12 bar. Coupling system with ISO B, ISO C and Euro profile. Made of anodised aluminium/nickel plated brass/NBR seals.

Availability:

Backordered

SKU: 26KPAW13APX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Seal Material	NBR
Brand	Parker	Shape	Straight
Minimum Operating Temperature	-4 °F	Connection Type	BSPP
Technology	Pneumatics	Connection Size	1/4 inch
Region of Origin	Germany	Product Style	Quick-Connect
Interchange Type	European Profile	Media	Compressed Air
Specifications Met	DI: 2002/95/EC (RoHS), 2011/65/EC, DI: 1907/2006 (REACH), ISO 4414 Pneumatic Fluid Power: General Rules Relating to Systems	Industry Application	Workshops, Cleaning, Blowing, Pneumatics, Air-Operated Tools, Ring Main Circuits, Packaging
Valve Type	Standard Valve	Plating Type	Without Surface Treatment
Product Type	Quick Couplings Pneumatic	Maximum Operating Temperature	up to 212 °F
Weight	0.13 kg	Product Series	Series 26
Compatible Fitting	Series 26 Plug	Diameter	7.2
Operation Type	Push Button
Connection Type	Male, BSPP	Connection Size	G 1/4
Profile	European Profile	Diameter	7.4 DN
