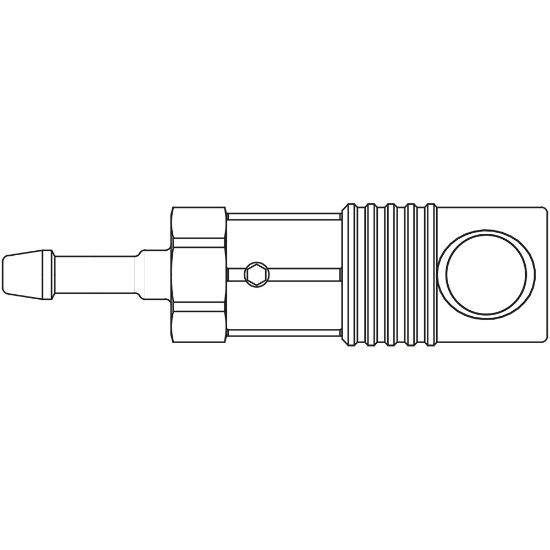

Safety Push Button Quick Coupling, Series KP - 18KPTF08APX

Name: Safety Push Button Quick Coupling, Series KP - 18KPTF08APX
SKU: 18KPTF08APX
Availability: OutOfStock

Self-venting quick coupling system with push button, nominal diameter from 5.5 to 8 mm for pneumatic applications up to 12 bar. Coupling system with ISO B, ISO C and Euro profile. Made of anodised aluminium/nickel plated brass/NBR seals.

Availability:

Backordered

SKU: 18KPTF08APX

Qty:

Products specifications

Attribute name	Attribute value
Quantity per Box	5	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	100 °C	Weight	0.1 kg
Minimum Operating Temperature	-20 °C	O-Ring Material	NBR
Body Material	Brass, Nickel-plated	Maximum Operating Pressure	12 bar
Media	Compressed Air	Specifications Met	DI: 2002/95/EC (RoHS), 2011/65/EC, DI: 1907/2006 (REACH), ISO 4414 Pneumatic Fluid Power: General Rules Relating to Systems
Industry Application	Workshops, Cleaning, Blowing, Pneumatics, Air-Operated Tools, Ring Main Circuits, Packaging
Connection Type	Hose Barb	Connection Size	8 mm
Profile	ISO C Profile	Diameter	5.5 DN
