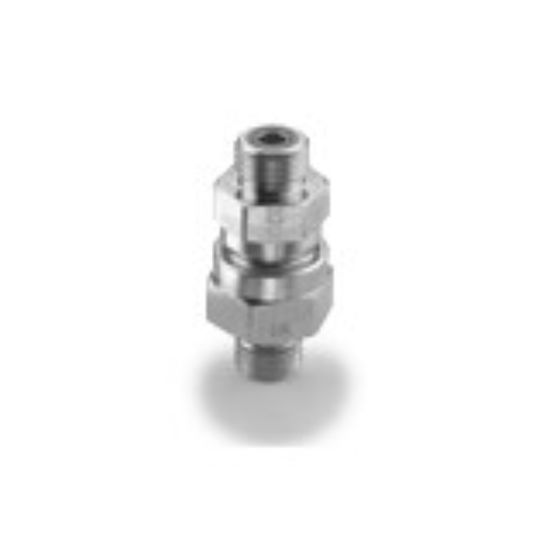

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

SAE Non return valves - 4M12RHZ82EDMLOSCF

Name: SAE Non return valves - 4M12RHZ82EDMLOSCF
SKU: 4M12RHZ82EDMLOSCF
Availability: OutOfStock

Parker non-return valves with an ISO 8434-2 (Triple-Lok®) or 8434-3 (O-Lok®) connection offer a wide range of sizes, male threads and cracking pressures, making them very flexible.

Availability:

Backordered

SKU: 4M12RHZ82EDMLOSCF

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Configuration	n/a
Maximum Operating Temperature	120 °C	Actuation Type	Mechanical
Mounting Type	Screw	Cracking Pressure	1 bar
Maximum Flow Rate	n/a	Seal Material	NBR
Maximum Operating Pressure	420 bar	Connection 2 Type	O-Lok® ORFS End
Connection 1 Size	9/16"-18 UNF inch	Connection 1 Type	O-Lok® ORFS End
Flow Direction	Tube to Port	Body Material	Steel
Division	High Pressure Connectors Europe Division	Connection 2 Size	M12x1.5
Connection 1 Tube Outside Diameter	1/4" (6 mm)	Flow Direction	Tube to Port
Connection 2 Tube Outside Diameter	n/a	Connection 1 Type	O-Lok ORFS end
Materials of Construction	Steel	Connection 2 Size	M 12x1.5
Connection 2 Type	Male metric thread - ED-seal (ISO 9974)	Connection 1 Size	9/16-18 UNF
Seal Material	NBR

Product resources

Compliance, Certifications & Safety

Bureau Veritas Certificate 23071/CO BV
