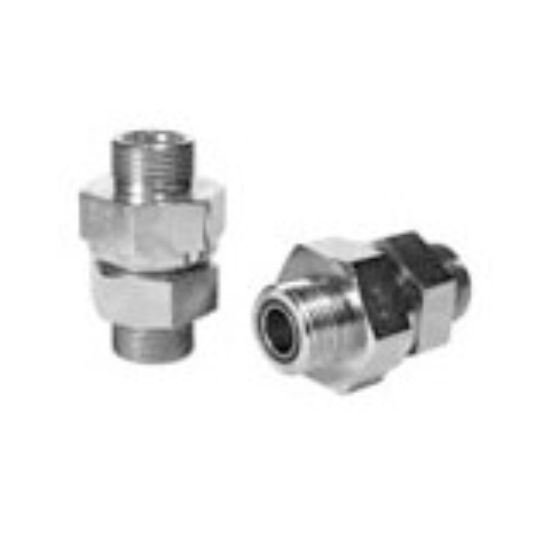

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

SAE Non return valves - 24RHDMLOSCF

Name: SAE Non return valves - 24RHDMLOSCF
SKU: 24RHDMLOSCF
Availability: OutOfStock

Parker non-return valves with an ISO 8434-2 (Triple-Lok®) or 8434-3 (O-Lok®) connection offer a wide range of sizes, male threads and cracking pressures, making them very flexible.

Availability:

Backordered

SKU: 24RHDMLOSCF

Qty:

Products specifications

Attribute name	Attribute value
Division	High Pressure Connectors Europe Division	Maximum Operating Temperature	120 °C
Mounting Type	Screw	Configuration	n/a
Actuation Type	Mechanical	Connection 2 Size	2"-12 UNF inch
Connection 2 Type	O-Lok® ORFS End	Maximum Operating Pressure	250 bar
Seal Material	NBR	Connection 1 Size	2"-12 UNF inch
Connection 1 Type	O-Lok® ORFS End	Body Material	Steel
Minimum Operating Temperature	-40 °C	Maximum Flow Rate	n/a
Cracking Pressure	1 bar	Flow Direction	n/a
Connection 2 Tube Outside Diameter	1 1/2" (35, 38 mm)	Materials of Construction	Steel
Seal Material	NBR	Connection 2 Size	2-12 UNF
Flow Direction	n/a	Connection 1 Type	O-Lok ORFS end
Connection 1 Size	2-12 UNF	Connection 1 Tube Outside Diameter	1 1/2" (35, 38 mm)
Connection 2 Type	O-Lok ORFS end
