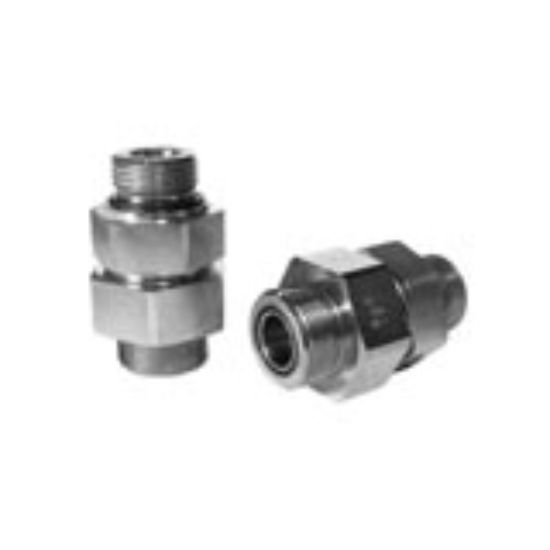

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

SAE Non return valves - 10RHV42EDMLOS0.5BCF

Name: SAE Non return valves - 10RHV42EDMLOS0.5BCF
SKU: 10RHV42EDMLOS0.5BCF
Availability: OutOfStock

Parker non-return valves with an ISO 8434-2 (Triple-Lok®) or 8434-3 (O-Lok®) connection offer a wide range of sizes, male threads and cracking pressures, making them very flexible.

Availability:

Backordered

SKU: 10RHV42EDMLOS0.5BCF

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Body Material	Steel
Configuration	n/a	Seal Material	NBR
Maximum Flow Rate	n/a	Maximum Operating Pressure	420 bar
Actuation Type	Mechanical	Cracking Pressure	0.5 bar
Division	High Pressure Connectors Europe Division	Maximum Operating Temperature	120 °C
Connection 1 Size	G 1/2	Connection 2 Size	1"-14 UNF inch
Connection 1 Type	Male BSPP to ED-seal (ISO 1179)	Connection 2 Type	O-Lok® ORFS End
Mounting Type	Screw	Flow Direction	Port to Tube
Division	High Pressure Connectors Europe Division
Seal Material	NBR	Materials of Construction	Steel
Flow Direction	Port to Tube	Connection 1 Size	G 1/2
Connection 1 Type	Male BSPP thread - ED-seal (ISO 1179)	Connection 2 Size	1-14 UNF
Connection 2 Type	O-Lok ORFS end	Connection 1 Tube Outside Diameter	n/a
Connection 2 Tube Outside Diameter	5/8" (14, 15, 16 mm)

Product resources

Compliance, Certifications & Safety

Bureau Veritas Certificate 23071/CO BV

Literature and Reference Materials
