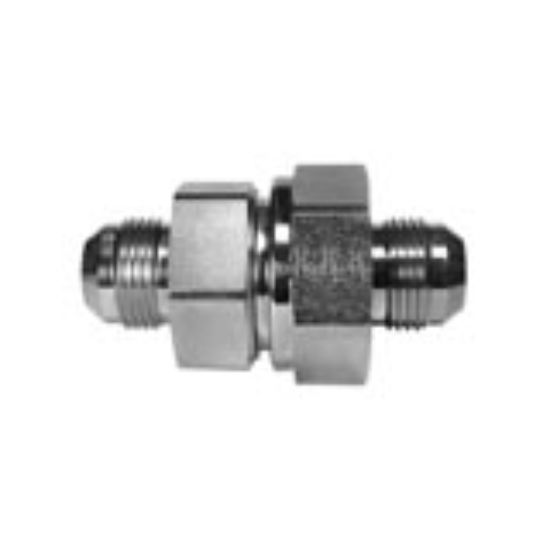

SAE Non return valves - 10RHDMTXSCF

Name: SAE Non return valves - 10RHDMTXSCF
SKU: 10RHDMTXSCF
Availability: OutOfStock

Parker non-return valves with an ISO 8434-2 (Triple-Lok®) or 8434-3 (O-Lok®) connection offer a wide range of sizes, male threads and cracking pressures, making them very flexible.

Availability:

Backordered

SKU: 10RHDMTXSCF

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Body Material	Steel
Maximum Operating Pressure	350 bar	Configuration	n/a
Seal Material	NBR	Maximum Flow Rate	n/a
Actuation Type	Mechanical	Division	High Pressure Connectors Europe Division
Maximum Operating Temperature	120 °C	Connection 1 Size	7/8"-14 UNF inch
Connection 2 Size	7/8"-14 UNF inch	Connection 1 Type	Triple-Lok® 37° Flare End
Connection 2 Type	Triple-Lok® 37° Flare End	Mounting Type	Screw
Flow Direction	n/a	Cracking Pressure	1 bar
Division	High Pressure Connectors Europe Division
Seal Material	NBR	Materials of Construction	Steel
Flow Direction	n/a	Connection 1 Size	7/8-14 UNF
Connection 1 Type	Triple-Lok 37° flare end	Connection 2 Size	7/8-14 UNF
Connection 2 Type	Triple-Lok 37° flare end	Connection 1 Tube Outside Diameter	5/8" (14, 15, 16 mm)
Connection 2 Tube Outside Diameter	5/8" (14, 15, 16 mm)

Product resources

Compliance, Certifications & Safety

Bureau Veritas Certificate 23071/CO BV
