*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

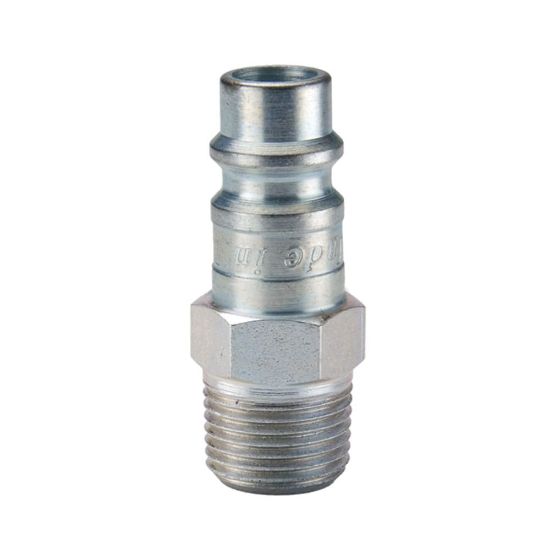

High Flow, Air Tool and Breathing Air Quick Couplings (pneumatic) High Flow European Interchange - RF Series Nipples - RF-254-4MP

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	4 in stock
Partner Available:	Backordered

SKU: RF-254-4MP

Products specifications

Attribute name	Attribute value
Application	Pneumatic	Coupling Half	Nipple
Maximum Operating Pressure	300 psi	Media	Low Pressure Fluids
Body Material	Steel	Maximum Operating Temperature	250 °F
Specifications Met	Interchanges with Rectus 25 and CEJN 320	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with clear trivalent chromate	Valve Type	Unvalved
Division	Quick Coupling Division
Connection Type	Male, NPTF	Connection Thread Size	1/4"-18
Thread Style	Male	Hose I.D.	n/a
Body Size	1/4"

Product resources

Literature and Reference Materials

Catalog 3800 Quick Coupling Products
