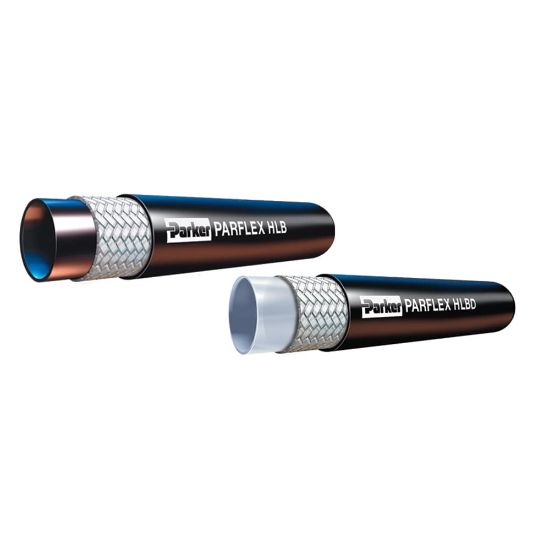

Remote Grease Hose 3000 psi - HLB - HLB03

The Parker HLB Grease Hose is a cost effective solution that is MSHA accepted and is more compact than comparable rubber grease hoses. It is designed for grease and lubrication lines in agriculture, construction or mobile equipment.

Availability:	Backordered
Partner Available:	19 in stock

SKU: HLB03

$2.15

Products specifications

Attribute name	Attribute value
Outside Diameter	0.410 inch	Size	-3
Cover Material	Polyurethane	Minimum Bend Radius	19 mm
Weight	0.08 kg/m	Application	Transportation
Maximum Operating Temperature	100 °C	Inside Diameter	5 mm
Compatible Fitting	CY Series	Hose Reinforcement Material	Fiber
Media	Petroleum Hydraulic Fluids	Design Factor	4:1
Maximum Operating Pressure	3000 psi	Specifications Met	MSHA
Division	Parflex Division	Hose Inner Tube Material	Copolyester
Minimum Operating Temperature	-40 °C
Hose I.D. (inch)	3/16
