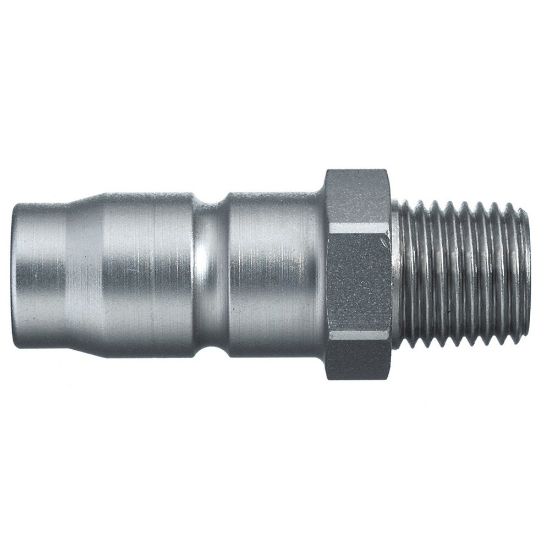

Quick Coupling with ISO 6150 B Profile, Series 37 - 37SFAK21SXN

Name: Quick Coupling with ISO 6150 B Profile, Series 37 - 37SFAK21SXN
SKU: 37SFAK21SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 11 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass.

Availability:

Backordered

SKU: 37SFAK21SXN

Qty:

Products specifications

Attribute name	Attribute value
Outside Diameter	35 mm	Maximum Operating Pressure	35 bar
Hex Size	na	Length	22 mm
Maximum Operating Temperature	100 °C	Division	Low Pressure Connectors Europe Division
Flow Rate	2350 L/min	Valve Included	No
Seal Material	na	Version	Single Shut-Off
Diameter	11 nom	Minimum Operating Temperature	-20 °C
Material	Steel - nickel plated	Type	Plug
Connection Thread Size (inch)	1/2	Connection Type	Male Thread - tapered
Hose I.D.	na
