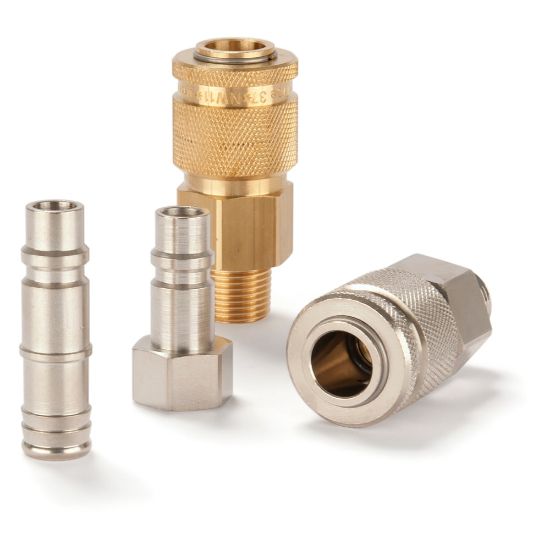

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling with ISO 6150 B Profile, Series 37 - 37KAIW17MPN

Name: Quick Coupling with ISO 6150 B Profile, Series 37 - 37KAIW17MPN
SKU: 37KAIW17MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 11 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass.

Availability:

Backordered

SKU: 37KAIW17MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Outside Diameter	35 mm	Flow Rate	2,600(air), 33(water) L/min
Hex Size	30 mm	Length	73 mm
Seal Material	NBR	Version	Single Shut-Off
Minimum Operating Temperature	-20 °C	Valve Included	Yes
Maximum Operating Pressure	35 bar	Diameter	11 nom
Material	Brass - nickel plated	Connection Type	Female Thread
Hose I.D.	na	Type	Coupling
Connection Thread Size (inch)	3/8
