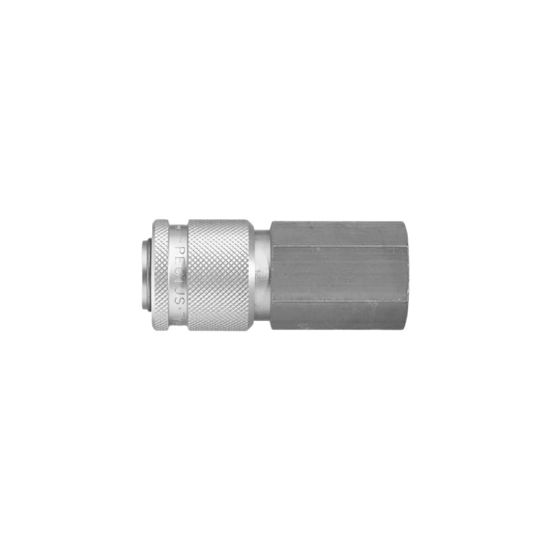

Quick Coupling with ISO 6150 B Profile, Series 37 - 37KAIN17MPN

Name: Quick Coupling with ISO 6150 B Profile, Series 37 - 37KAIN17MPN
SKU: 37KAIN17MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 11 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass.

Availability:

Backordered

SKU: 37KAIN17MPN

Qty:

Products specifications

Attribute name	Attribute value
Version	Single Shut-Off	Valve Included	Yes
Minimum Operating Temperature	-20 °C	Length	76 mm
Maximum Operating Pressure	35 bar	Diameter	11 nom
Maximum Operating Temperature	100 °C	Division	Low Pressure Connectors Europe Division
Outside Diameter	35 mm	Flow Rate	2350 L/min
Hex Size	30 mm	Seal Material	NBR
Hose I.D.	na	Connection Thread Size (inch)	3/8
Type	Coupling	Material	Brass - nickel plated
Connection Type	Female NPSF Thread
