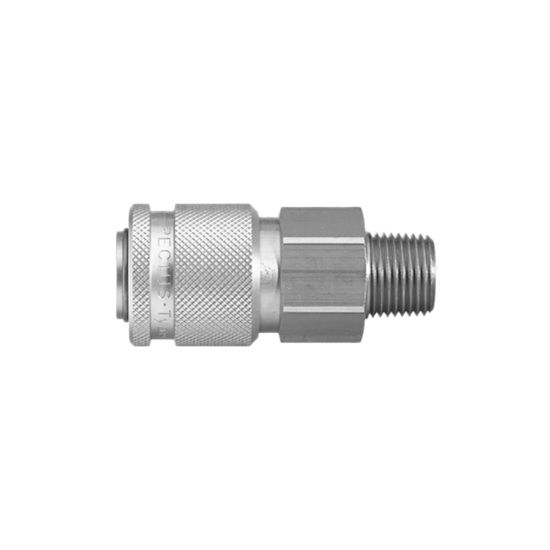

Quick Coupling with ISO 6150 B Profile, Series 37 - 37KAAN26MPX

Name: Quick Coupling with ISO 6150 B Profile, Series 37 - 37KAAN26MPX
SKU: 37KAAN26MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 11 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass.

Availability:

Backordered

SKU: 37KAAN26MPX

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-20 °C	Version	Single Shut-Off
Length	81 mm	Hex Size	30 mm
Diameter	11 nom	Valve Included	Yes
Maximum Operating Temperature	100 °C	Division	Low Pressure Connectors Europe Division
Outside Diameter	35 mm	Maximum Operating Pressure	35 bar
Seal Material	NBR	Flow Rate	2350 L/min
Hose I.D.	na	Type	Coupling
Material	Brass	Connection Thread Size (inch)	3/4
Connection Type	Male Thread - tapered
