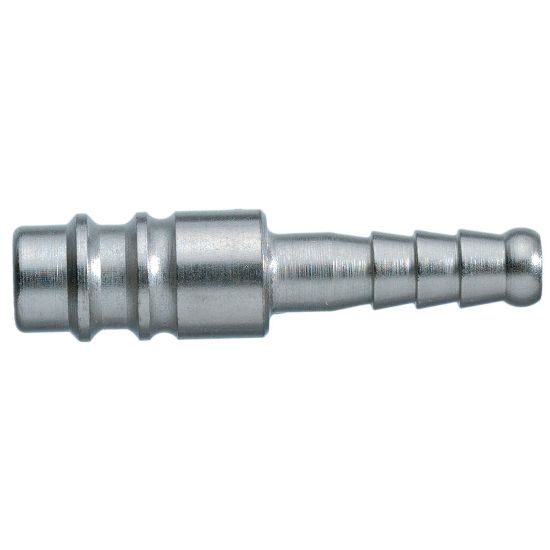

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SSTF13SXZ

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SSTF13SXZ
SKU: 25SSTF13SXZ
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SSTF13SXZ

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-20 °C
Body Material	Steel	Brand	Parker
Shape	Straight	Seal Material	Without seal
Hex Size	n/a	Valve Included	No
For Fluid Type	Air	Technology	Pneumatics
Industry	General Industrial	Length	48 mm
Flow Rate	1800 L/min	Outside Diameter	15 mm
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ATEX	Product Style	Quick-Connect
Diameter	7.8 mm (nominal)	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	13 mm
Interchange Type	European Profile	Maximum Operating Temperature	up to 464 °F
Valve Type	Without Valve	Coupling Half	Plug
Application	Safety & Rescue	Weight	0.0221 kg
Function	Safety (straight-through)	Product Series	Series 25 - Safety
Maximum Operating Pressure	up to 1015 psi	Plating Type	Zinc-plated
Connection Type	Hose Barb	Version	Single Shut-Off
Connection Size	13 mm	Coupling Half	Plug - Safety
Materials of Construction	Steel, Zinc-plated
