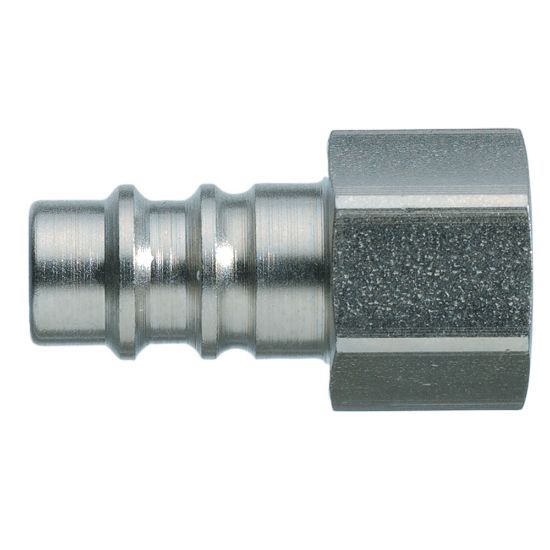

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SSIW21SXZ

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SSIW21SXZ
SKU: 25SSIW21SXZ
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SSIW21SXZ

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-40 °F
Body Material	Steel	For Fluid Type	Compressed Air
Application	General Industrial	Shape	Straight
Seal Material	Without seal	Maximum Operating Temperature	up to 240 °C
Valve Included	No	Technology	Pneumatics
Industry	Healthcare & Life Sciences	Length	36 mm
Hex Size	24 mm	Flow Rate	1800 L/min
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Brand	Rectus
Diameter	7.8 mm (nominal)	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	G 1/2
Interchange Type	European Profile	Connection Type	BSPP ISO 228 Parallel
Valve Type	Without Valve	Coupling Half	Plug
Function	Safety (straight-through)	Product Series	Series 25 - Safety
Maximum Operating Pressure	up to 1015 psi	Plating Type	Zinc-plated
Weight	0.0398 kg
Version	Single Shut-Off	Connection Size	1/2"
Connection Type	Female, BSPP	Coupling Half	Plug - Safety
Materials of Construction	Steel, Zinc-plated
