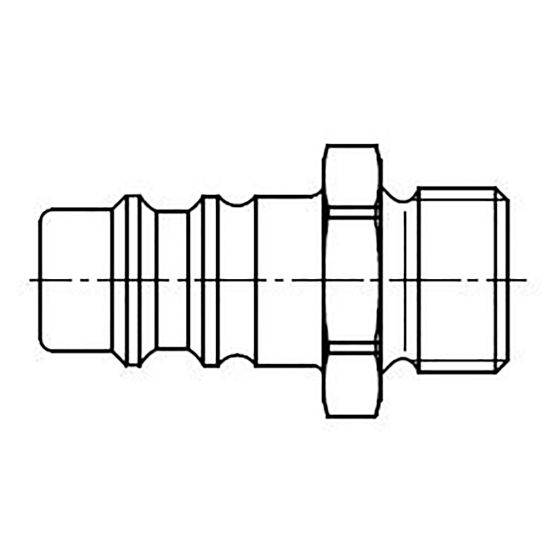

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SSAW13SXZ

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SSAW13SXZ
SKU: 25SSAW13SXZ
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SSAW13SXZ

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-40 °C
Body Material	Steel	Shape	Straight
Connection Size	G 1/4	Seal Material	Without seal
Maximum Operating Temperature	up to 240 °C	Valve Included	No
For Fluid Type	Air	Technology	Pneumatics
Industry	Healthcare & Life Sciences	Hex Size	17 mm
Length	33 mm	Flow Rate	1800 L/min
Region of Origin	Germany	Connection Type	Male
Specifications Met	ATEX	Product Style	Quick-Connect
Brand	Rectus	Diameter	7.8 mm (nominal)
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Valve Type	Standard Valve
Coupling Half	Plug	Application	Safety & Rescue
Function	Safety (straight-through)	Product Series	Series 25 - Safety
Maximum Operating Pressure	up to 1015 psi	Compatible Fitting	Series 1625 Coupler
Plating Type	Zinc-plated	Weight	0.0174 kg
Version	Single Shut-Off	Connection Size	1/4"
Connection Type	Male, BSPP	Coupling Half	Plug - Safety
Materials of Construction	Steel, Zinc-plated
