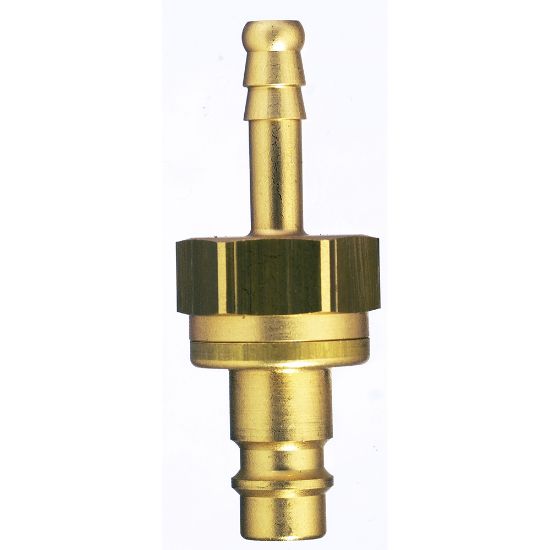

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SLTF13RVX

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SLTF13RVX
SKU: 25SLTF13RVX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SLTF13RVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Minimum Operating Temperature	-15 °C	Brand	Parker
Shape	Straight	Valve Included	Yes
Technology	Fluid & Gas Handling	Seal Material	FKM
Maximum Operating Temperature	200 °C	For Fluid Type	Steam
Hex Size	19 mm	Body Material	Stainless Steel 303
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Valve Type	Ultra High Flow Valve
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	13 mm	Interchange Type	European Profile
Industry	Electronics	Length	72 mm
Plating Type	Without Surface Treatment	Coupling Half	Plug
Function	Dry-Break (double shut-off)	Diameter	7.4 mm (nominal)
Product Series	Series 25	Flow Rate	7.1 L/min (water)
Weight	0.0547 kg
Connection Type	Hose Barb	Connection Size	13 mm
Materials of Construction	Stainless Steel AISI 303	Coupling Half	Plug
Version	Flat Sealing
