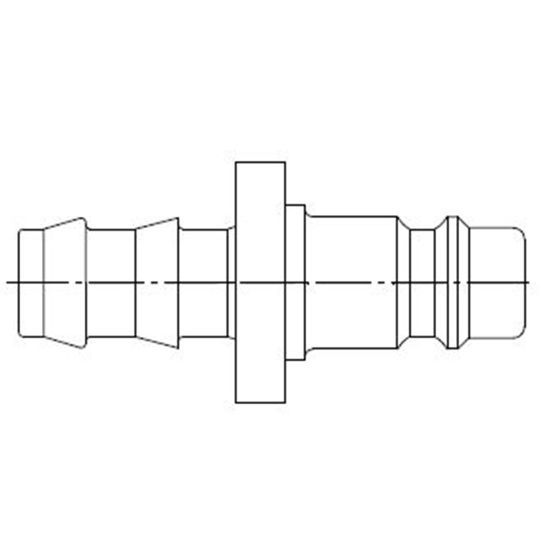

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SFTP13SXN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SFTP13SXN
SKU: 25SFTP13SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SFTP13SXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Body Material	Steel
Specifications Met	RoHS	For Fluid Type	Compressed Air
Brand	Parker	Shape	Straight
Seal Material	Without seal	Maximum Operating Temperature	up to 240 °C
Minimum Operating Temperature	down to -40 °C	Valve Included	No
Technology	Fluid & Gas Handling	Industry	General Industrial
Region of Origin	Germany	Connection Type	Parker Push-Lok Hose
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Diameter	7.8 mm (nominal)	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	10 mm	Interchange Type	European Profile
Application	Energy Management	Function	Straight-Through
Valve Type	Without Valve	Coupling Half	Plug
Weight	0.0249 kg	Product Series	Series 25
Flow Rate	710 L/min	Length	47.5 mm
Hex Size	No mm
Version	Single Shut-Off	Connection Size	10 mm
Connection Type	Parker Hose Barb	Coupling Half	Plug
Materials of Construction	Steel, Nickel-plated
