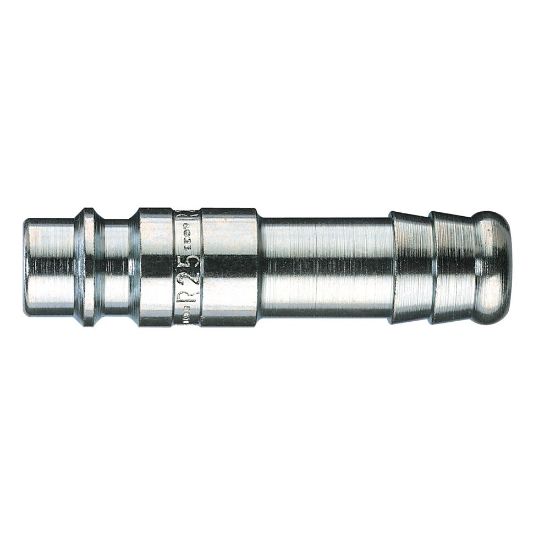

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SFTF09RXX

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SFTF09RXX
SKU: 25SFTF09RXX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SFTF09RXX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-40 °C
Brand	Parker	Shape	Straight
Seal Material	Without seal	Maximum Operating Temperature	up to 240 °C
Hex Size	n/a	Valve Included	No
For Fluid Type	Air	Technology	Fluid & Gas Handling
Application	Electronics	Length	48 mm
Body Material	Stainless Steel 303	Outside Diameter	12 mm
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	9 mm
Interchange Type	European Profile	Industry	Electronics
Plating Type	Without Surface Treatment	Function	Straight-Through
Valve Type	Without Valve	Coupling Half	Plug
Weight	0.0151 kg	Diameter	7.4 mm (nominal)
Product Series	Series 25	Flow Rate	28 L/min (water)
Compatible Fitting	Series 25 Coupler
Connection Type	Hose Barb	Version	Single Shut-Off
Connection Size	9 mm	Materials of Construction	Stainless Steel AISI 303
Coupling Half	Plug
