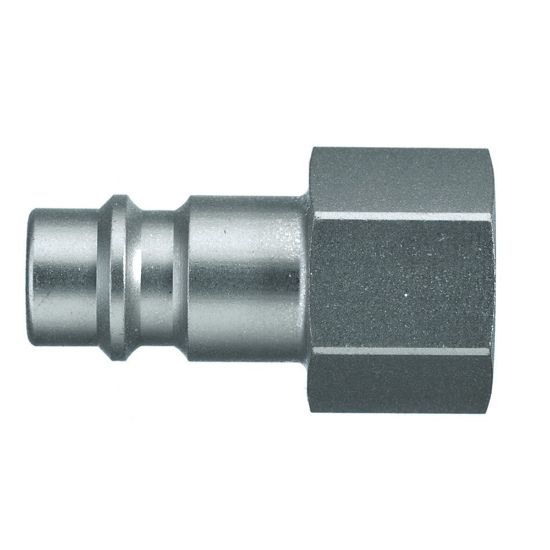

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SFIW21RXX

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SFIW21RXX
SKU: 25SFIW21RXX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SFIW21RXX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Weight	0.035 kg	Specifications Met	RoHS
Shape	Straight	Seal Material	Without seal
Maximum Operating Temperature	up to 240 °C	Valve Included	No
For Fluid Type	Air	Technology	Pneumatics
Industry	Healthcare & Life Sciences	Body Material	Stainless Steel 303
Hex Size	24 mm	Length	35 mm
Region of Origin	Germany	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Brand	Rectus
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	G 1/2	Interchange Type	European Profile
Connection Type	BSPP ISO 228 Parallel	Plating Type	Without Surface Treatment
Function	Straight-Through	Valve Type	Without Valve
Coupling Half	Plug	Minimum Operating Temperature	down to -40 °F
Diameter	7.4 mm (nominal)	Flow Rate	1800 L/min (air)
Product Series	Series 25	Compatible Fitting	Series 1600 Coupler
Version	Single Shut-Off	Connection Size	1/2"
Connection Type	Female, BSPP	Materials of Construction	Stainless Steel AISI 303
Coupling Half	Plug
