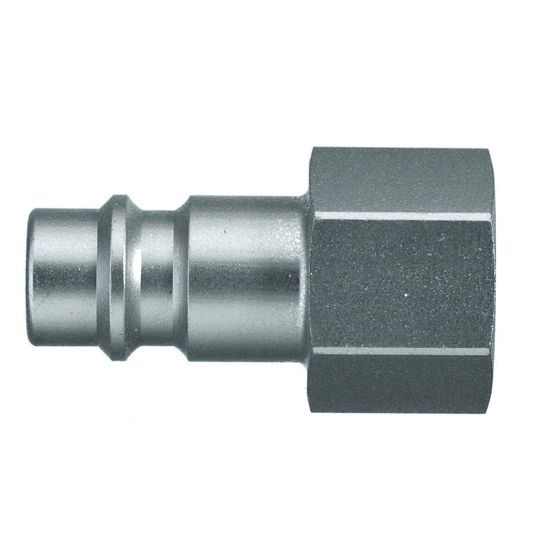

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SFIW17SXZ

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SFIW17SXZ
SKU: 25SFIW17SXZ
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SFIW17SXZ

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-40 °C
Weight	0.023 kg	Body Material	Steel
Specifications Met	RoHS	Shape	Straight
Seal Material	Without seal	Maximum Operating Temperature	up to 240 °C
Valve Included	No	For Fluid Type	Water
Technology	Fluid & Gas Handling	Industry	General Industrial
Hex Size	19 mm	Region of Origin	Germany
Assembly Time	n/a Transair Piping Designer	Pipe Outside Diameter	16.5 mm Transair Piping Designer
Application	Air & Gas Compressor	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Diameter	7.8 mm (nominal)	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	G 3/8
Interchange Type	European Profile	Connection Type	BSPP ISO 228 Parallel
Length	39.5 mm	Function	Straight-Through
Valve Type	Without Valve	Coupling Half	Plug
Product Series	Series 25	Flow Rate	28 L/min (water)
Compatible Fitting	Series 25 Coupler	Plating Type	Zinc-plated
Version	Single Shut-Off	Connection Size	3/8"
Connection Type	Female, BSPP	Coupling Half	Plug
Materials of Construction	Steel, Zinc-plated
