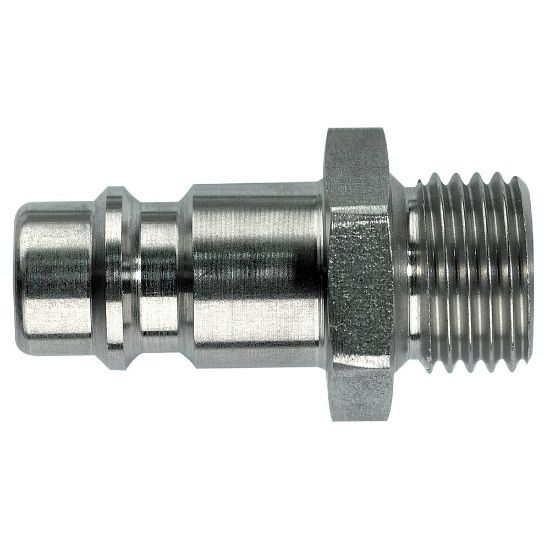

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SFAW21RXX

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SFAW21RXX
SKU: 25SFAW21RXX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SFAW21RXX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.046 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
For Fluid Type	Compressed Air	Shape	Straight
Industry	Transportation	Seal Material	Without seal
Maximum Operating Temperature	up to 240 °C	Valve Included	No
Technology	Pneumatics	Length	38 mm
Body Material	Stainless Steel 303	Hex Size	24 mm
Region of Origin	Germany	Connection Type	Male
Specifications Met	ATEX	Application	Trucks & Trailers
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	G 1/2
Interchange Type	European Profile	Plating Type	Without Surface Treatment
Function	Straight-Through	Valve Type	Without Valve
Coupling Half	Plug	Minimum Operating Temperature	down to -40 °F
Diameter	7.4 mm (nominal)	Flow Rate	1800 L/min (air)
Product Series	Series 25	Compatible Fitting	Series 1600 Coupler
Version	Single Shut-Off	Connection Size	1/2"
Connection Type	Male, BSPP	Materials of Construction	Stainless Steel AISI 303
Coupling Half	Plug
