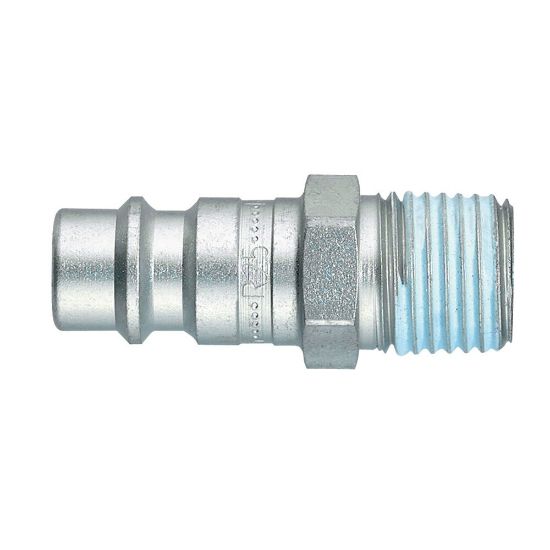

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SFAD14SXZ

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SFAD14SXZ
SKU: 25SFAD14SXZ
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SFAD14SXZ

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-20 °C
Body Material	Steel	For Fluid Type	Compressed Air
Shape	Straight	Industry	Transportation
Seal Material	Without seal	Valve Included	No
Technology	Pneumatics	Connection Type	Metric
Hex Size	17 mm	Length	35 mm
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Diameter	7.8 mm (nominal)
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Application	Energy Management
Maximum Operating Temperature	up to 464 °F	Function	Straight-Through
Valve Type	Without Valve	Coupling Half	Plug
Weight	0.0253 kg	Flow Rate	1800 L/min (air)
Product Series	Series 25	Connection Size	14x1.5
Plating Type	Zinc-plated
Connection Type	Male, Metric	Version	Single Shut-Off
Coupling Half	Plug	Connection Size	14x1.5 mm
Materials of Construction	Steel, Zinc-plated
