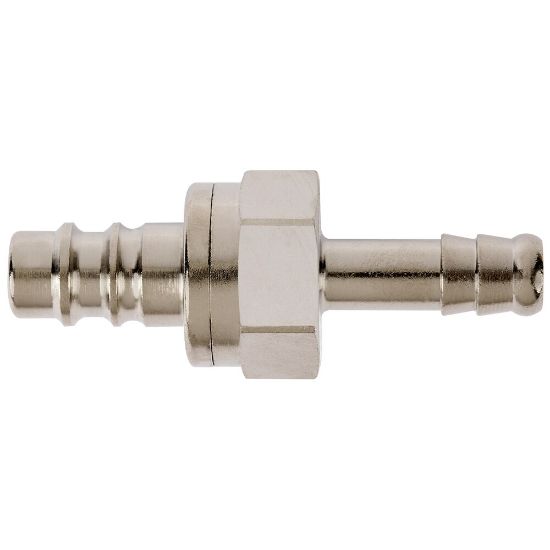

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SDTF09MPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SDTF09MPN
SKU: 25SDTF09MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SDTF09MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Maximum Operating Temperature	100 °C	Seal Material	NBR
Specifications Met	RoHS	Application	General Industrial
Shape	Straight	Minimum Operating Temperature	-4 °F
Valve Included	Yes	Technology	Fluid & Gas Handling
Length	60 mm	Industry	Healthcare & Life Sciences
Hex Size	21 mm	Region of Origin	Germany
Connection Type	Hose Barb	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Diameter	7.8 mm (nominal)	Valve Type	Ultra High Flow Valve
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	9 mm
Interchange Type	European Profile	For Fluid Type	Chemical Fluids
Coupling Half	Plug	Function	Safety (double shut-off)
Flow Rate	7.1 L/min (water)	Product Series	Series 25 - Safety
Weight	0.0479 kg
Connection Type	Hose Barb	Materials of Construction	Brass, Nickel-plated
Version	Double Shut-Off	Connection Size	9 mm
Coupling Half	Plug - Safety
