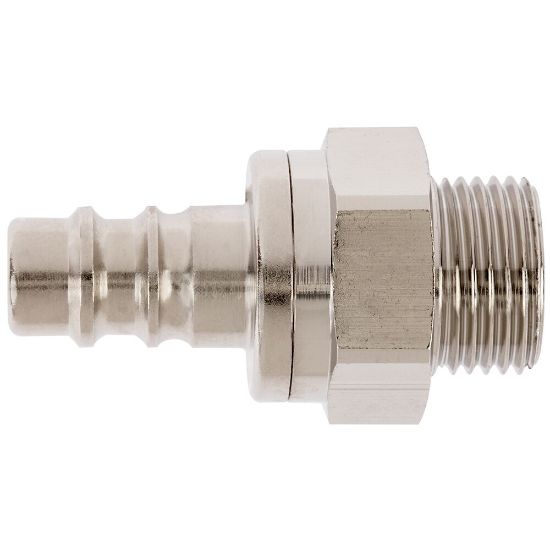

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SDAW21MPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SDAW21MPN
SKU: 25SDAW21MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SDAW21MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	NBR	Brand	Parker
Shape	Straight	Valve Included	Yes
Technology	Fluid & Gas Handling	Industry	General Industrial
Length	46 mm	Hex Size	22 mm
Region of Origin	Germany	Connection Type	Male
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Diameter	7.8 mm (nominal)
Valve Type	Ultra High Flow Valve	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	G 1/2	Interchange Type	European Profile
For Fluid Type	Chemical Fluids	Coupling Half	Plug
Application	Safety & Rescue	Function	Safety (double shut-off)
Flow Rate	7.1 L/min (water)	Product Series	Series 25 - Safety
Weight	0.0601 kg
Materials of Construction	Brass, Nickel-plated	Version	Double Shut-Off
Connection Size	1/2"	Connection Type	Male, BSPP
Coupling Half	Plug - Safety
