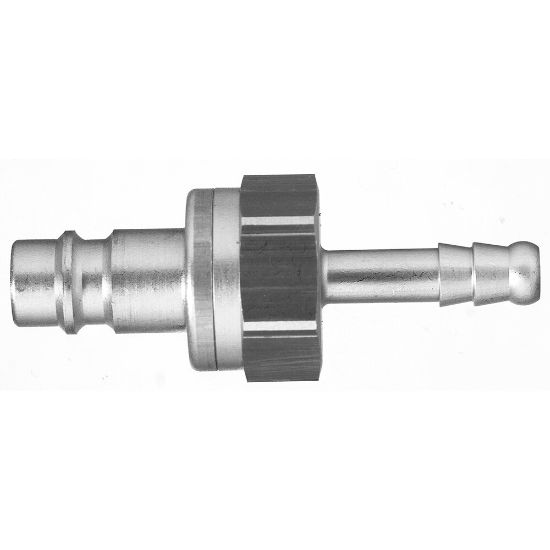

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SBTP13MPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SBTP13MPN
SKU: 25SBTP13MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SBTP13MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Maximum Operating Temperature	100 °C	Seal Material	NBR
Specifications Met	RoHS	Brand	Parker
Shape	Straight	Minimum Operating Temperature	-4 °F
Valve Included	Yes	Technology	Fluid & Gas Handling
Hex Size	19 mm	Region of Origin	Germany
Connection Type	Parker Push-Lok Hose	Application	Mobile & Defence
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Diameter	7.8 mm (nominal)	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	13 mm	Interchange Type	European Profile
Function	Double Shut-Off	Industry	Electronics
Length	83 mm	For Fluid Type	Chemical Fluids
Coupling Half	Plug	Valve Type	High Flow Valve
Product Series	Series 25	Flow Rate	7.1 L/min (water)
Compatible Fitting	Series 1625 Coupler	Weight	0.0551 kg
Materials of Construction	Brass, Nickel-plated	Version	Double Shut-Off
Connection Size	13 mm	Connection Type	Parker Hose Barb
Coupling Half	Plug
