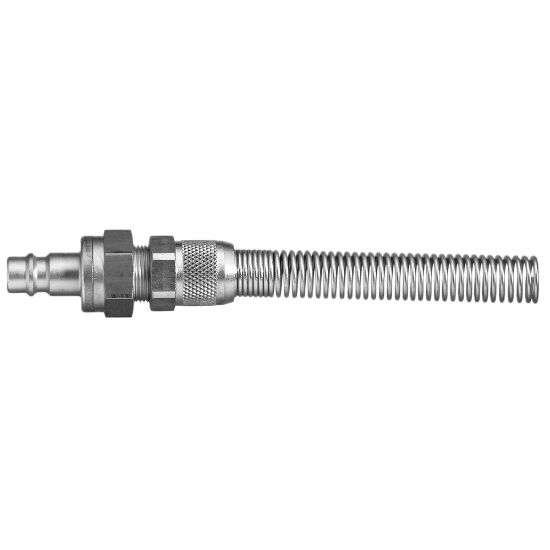

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SBKK12MPX

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SBKK12MPX
SKU: 25SBKK12MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SBKK12MPX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Weight	0.099 kg	Seal Material	NBR
Brand	Parker	Shape	Straight
Minimum Operating Temperature	-4 °F	Industry	Transportation
Valve Included	Yes	Maximum Operating Temperature	212 °F
Technology	Fluid & Gas Handling	Hex Size	19 mm
Region of Origin	Germany	Connection Type	Tube with Spring Guard
Specifications Met	ATEX	Application	Mobile & Defence
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Diameter	7.8 mm (nominal)	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Function	Double Shut-Off	Plating Type	Without Surface Treatment
For Fluid Type	Chemical Fluids	Coupling Half	Plug
Valve Type	High Flow Valve	Product Series	Series 25
Connection Size	9x12 mm	Flow Rate	7.1 L/min (water)
Length	150 mm
Materials of Construction	Brass	Version	Double Shut-Off
Connection Type	Plastic Hose Connection with Spring Guard	Coupling Half	Plug
Connection Size	9x12 mm
